Koi

 inflatable line laundry only

<-- Plšne


These 4m Koi was made 2007. Unfortunately it is only inflatable line laundry.
The Koi is 'too fat' for a self and stable flying kite. The point of maximum lift is too far back.

Koi

Nevertheless you can use the drawings to make your own one.

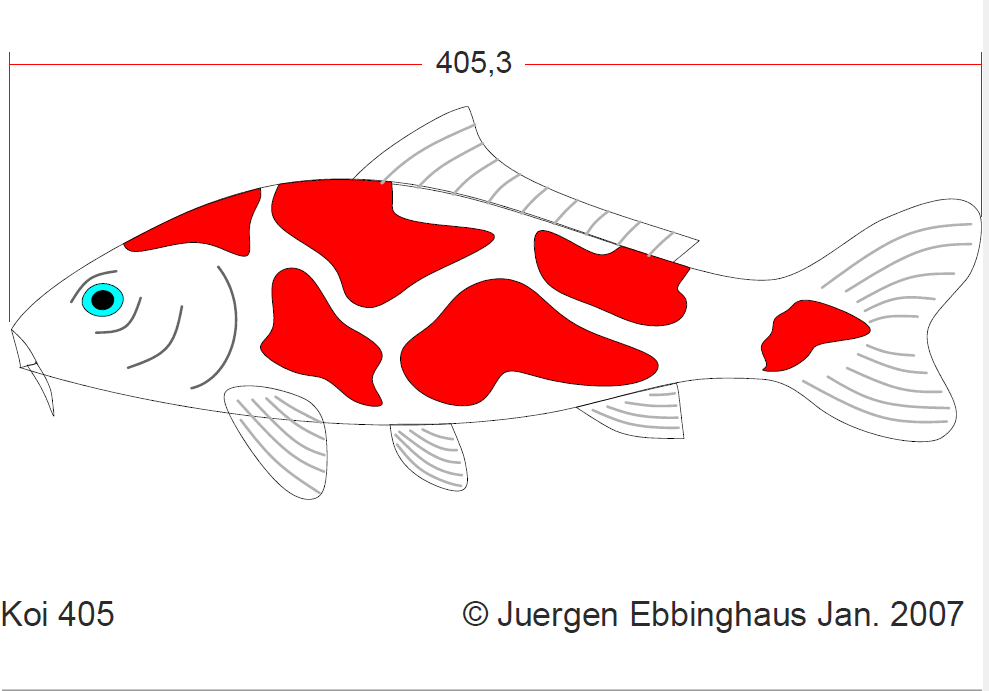

View from side

Side

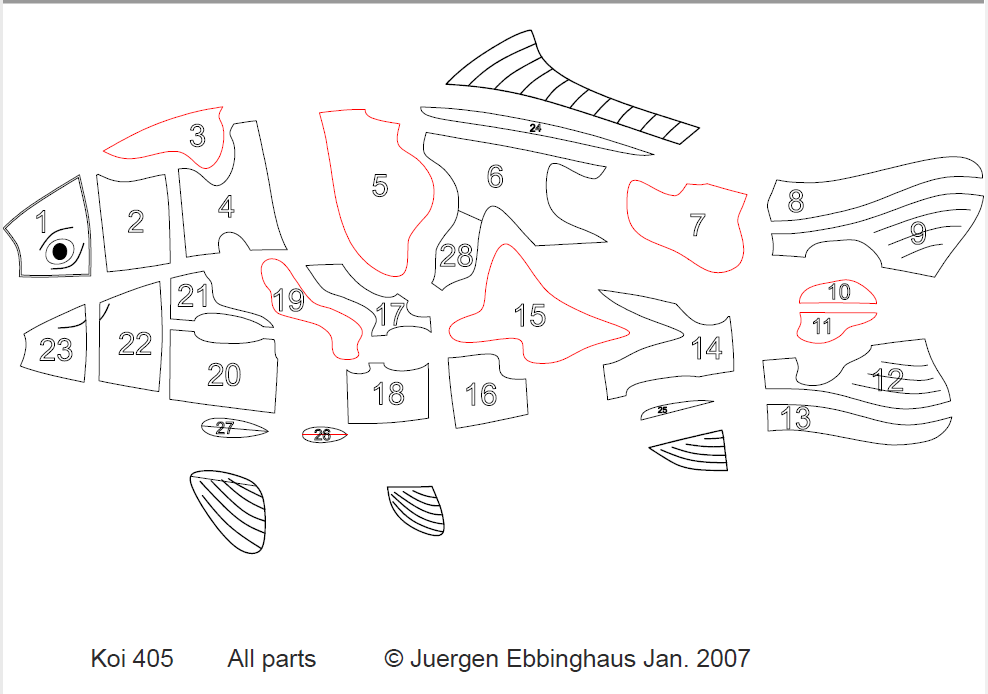

The whole puzzle :-)

All parts

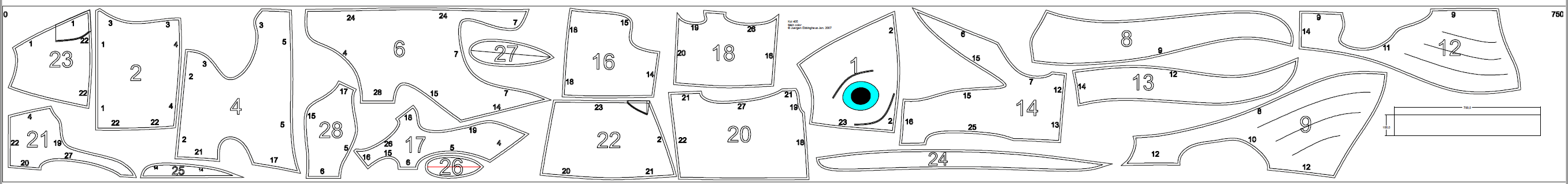

Main color patterns. (white, 2* 7.5 m, 1 m wide)              Don't forget to cut it twice or immediately as two layers.

Main color

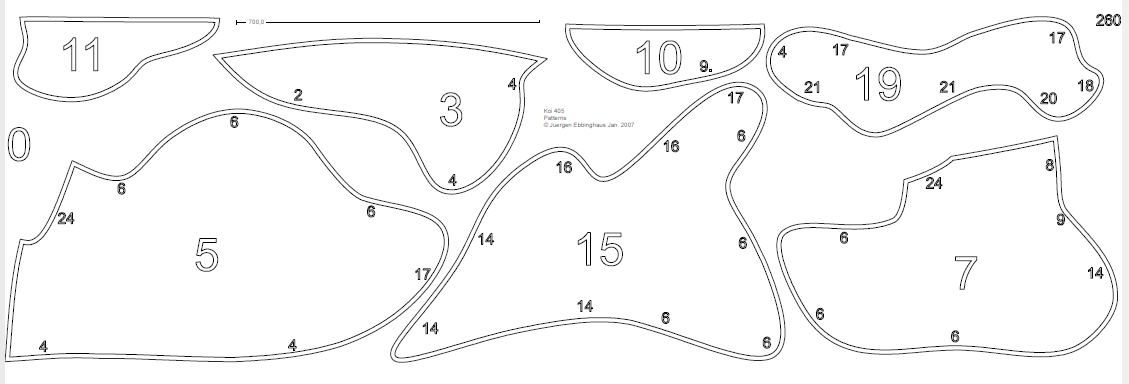

Second color patterns. (red, 2*2.6 m, 1 m wide)             Don't forget to cut it twice or immediately as two layers.

Second color

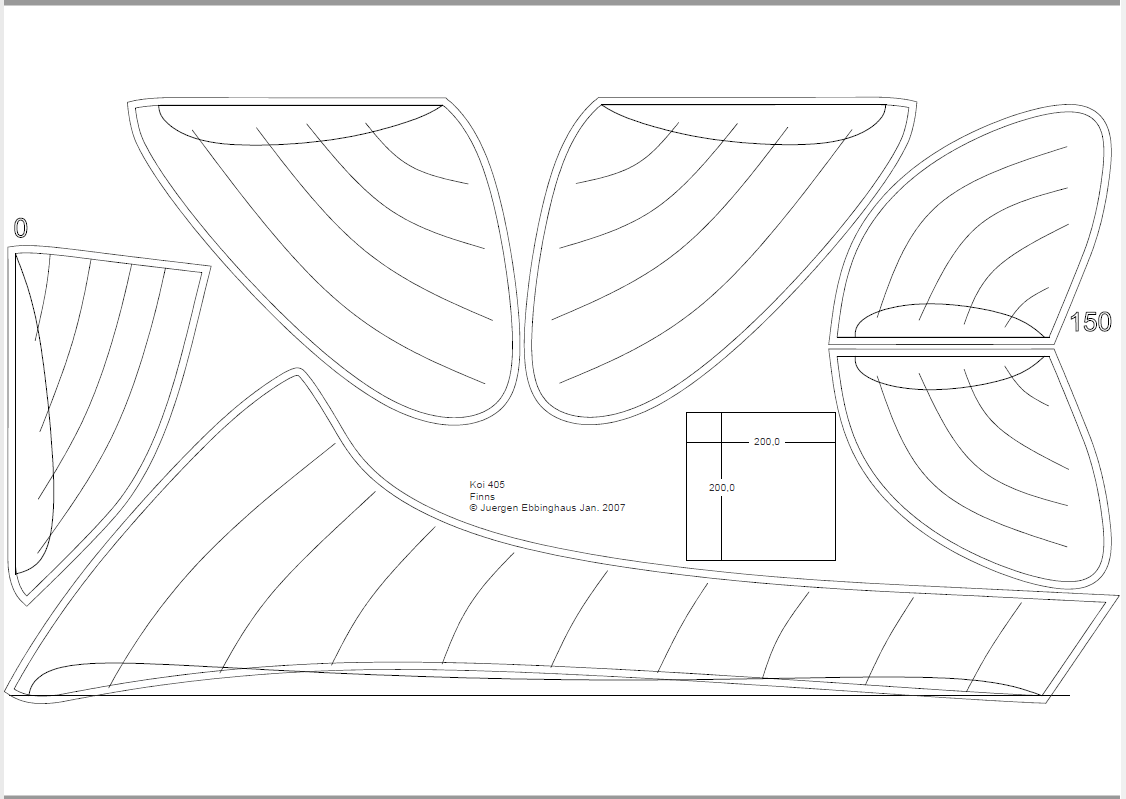

Finns color patterns. (white, 2* 1.5 m, 1 m wide)         Don't forget to cut it twice or immediately as two layers.

Finns

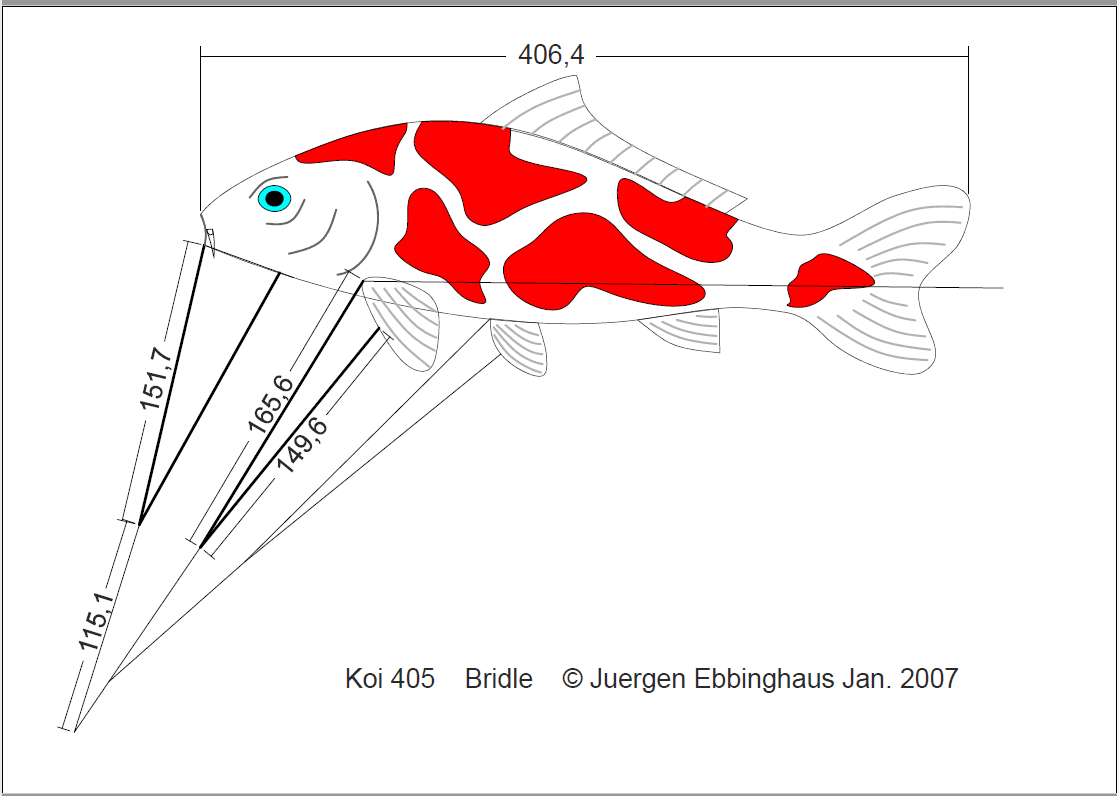

Bridle lines

Bridle
